With Loopfront it is easy to do re-use surveys of building materials according to the specs of TEK17 and BREEAM-NOR v6.0
When you have created a location and begin surveying a material that has the potential for re-use, Loopfront helps you by highlighting the input fields that are mandatory in the context of TEK17 and BREEAM-NOR v6.0 in the add material input form.
You can see an example below of how we have added yellow labels to highlight what input fields are mandatory if you want to do a TEK-17 compliant reuse survey or a BREEAM-NOR v6.0 compliant reuse survey.

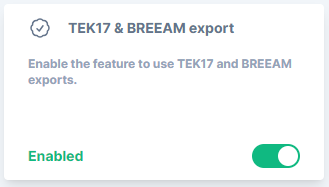

Note that you with Loopfront also can get Excel exports for your TEK17 and BREEAM-NOR surveys with only the specific data that are obligatory according to these two standards.
Please contact us at support@loopfront.com if you want this reporting feature to be enabled in your organization's Loofront eco system.

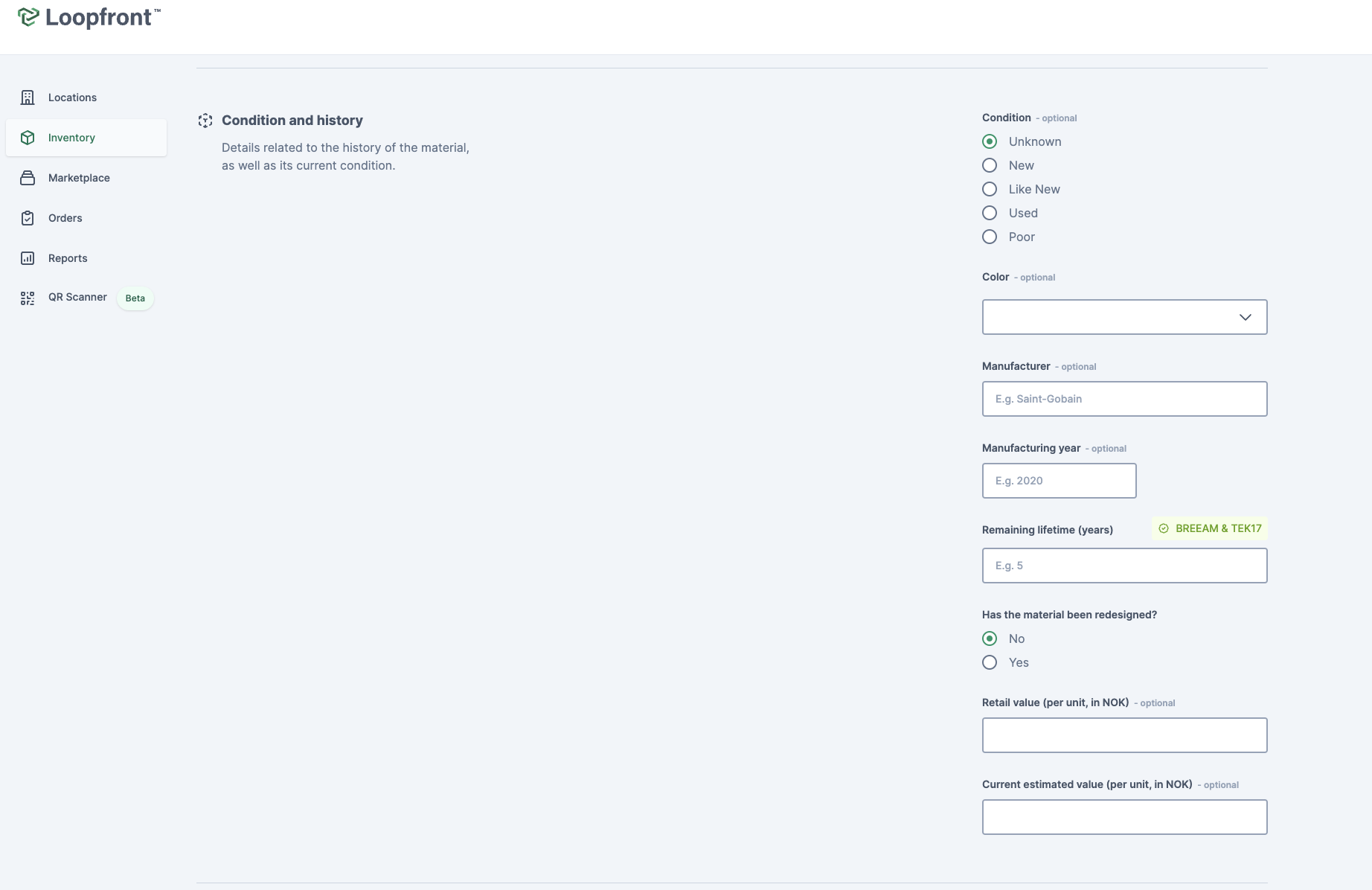

See the yellow labels to the right in the screenshot below for an example.
The table below gives a description of what input data are required for TEK17 and BREEAM-NOR v6.0 reuse surveys.
|
Required Data |
How to input |
Required for TEK17? |
Required for BREEAM NOR? |
|---|---|---|---|
|
Survey date and surveyor name and company |
Date and email of the surveyor is captured automatically |
YES |
YES (Mat 06) |
|
Name of municipality, “gårdsnummer“, and “bruksnummer“. |
“Gårdsnummer“ and “bruksnummer“ can be input in the Details section when editing a location |
YES |
NO |
|
Year of construction |
Can be input in the Details section when editing a location |
YES |
NO |
|
Previous building use (if known) |
Can be input in the Details section when editing a location |
YES |
NO |
|
Amount of material |
Registered by filling out material Amount and Unit |
YES |
YES (Mat 06) |
|
Type of material (Short description) |
Registered by filling out material Title and Description |
YES |
YES (Mat 06) |
|
Evaluation of reusability (Yes/No) |
Can be selected under "Can be reused as is" |
YES |
NO |
|
Evaluation of reusability (Short description) |
Text box after selecting an answer for "Can be reused as is" |
YES |
YES (Mat 06) |
|
Assessment of remaining lifetime |
Can be filled out under "Approx. remaining lifetime" |
YES |
YES (Mat 06) |
|
Need for documentation |
Can be filled out under "Is documentation required?" |
NO |
YES (Mat 06) |
|
Original documentation if available |
Can be uploaded in the "Passport" tab of the material after creation |
YES |
NO |
|
Evaluation of original documentation |
Text box after selecting "Yes" for "Is documentation required?" |
YES |
YES (Mat 06) |
|
Categorised by table of building elements |
Registered by filling out Category and Subcategory |
YES |
YES (Mat 06) |
|
Description of disassembly |
Text box after selecting an answer for "Can be disassembled as is" |
NO |
YES (Mat 06) |
Verification
BREEAM NOR 6.0 requires that a qualified person has verified the registered data. If the person verifying the data is someone else than the one who created the material in Loopfront, the verification field can be used to register this. Administrators can verify on behalf of others.
